Dust Filter

TBLMY Series Impulse Dust Collecter for Biomass Pellet Plant


Dust Collecter for Biomass Pellet Plant Feature:

Special Design of Jet-blow device, Frame Structure, Disassemble and Maintain Easy.
Square Meter Filter Capacity for per hop-pocket, Low Occupied Area.
Our Series include TBLMY4, 9, 12, 15, 21, 28, 40, 56

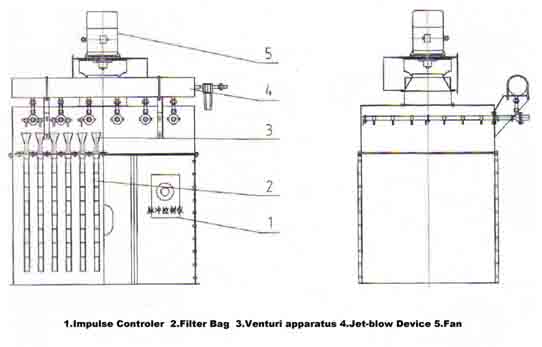

Sketch Drawing

Dust Collecter for Biomass Pellet Plant Parameter:

Model No. of Bags(Pcs) Filter Area(m 2) Wind Capacity(m 3/h) Pressure of Compressed Air(Pa) Impulse time(s) Impulse Period(min) Power(kw) Filter Efficiency(%)
TBLM4 4 4 900—1600 0.5-0.7 0.03~0.2 1.3~26 1.5 99.9
TBLM9 9 9 1900—2700 0.5-0.7 0.03~0.2 1.3~26 2.2 99.9
TBLM12 12 12 2100—3600 0.5-0.7 0.03~0.2 1.3~26 3.0 99.9
TBLM24 24 24 3800—6300 0.5-0.7 0.03~0.2 1.3~26 4 99.9
TBLM40 40 40 8400—12000 0.5-0.7 0.03~0.2 1.3~26 7.5 99.9
TBLM56 56 56 9000—15000 0.5-0.7 0.03~0.2 1.3~26 7.5 99.9
Anyang General International Co.,Ltd is one of the leading Chinese companies who have specialised in the design and Manufacturer of Biomass Pellet Plant,Biomass Pelleting Plant.

Tags:Biomass Pellet Plant, Biomass Pelleting Plant, Biomass Pelleting,
