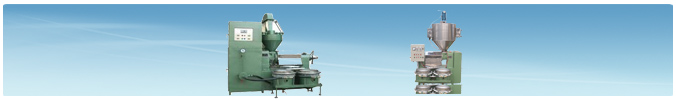

Integrated Models Oil Press

What is an Integrated Oil Press?

The integrated oil press is an advanced model from the screw oil press. They include press, motor, vacuum filter, heater, and electric control cabinet. The function of the oil filter is used to get rid of impurities in the oil. Then the clean oil can use for biodiesel, vegetable oil, and/or edible oil.

This integrated oil pocess equipment also can be designed for the "C" series. The difference betweem them is the electrical fryer in "C" series press. The fryer is helpful for the higher oil output. This type oil Processing Equipment is very popular in individual and small oil mills.
integrated oil press

Main Structure of Integrated Oil Press Machine

This combined oil expeller mostly composed by four parts: feeder, press chamber, electrical control and vacuum filter drum. The heating system is inside press cage. The filtering drum is vacuum filter with sight glass. The oil sight glass can help user to control the speed of oil clearing process. Integrated oil press machines are ideal choice for those who do business in the country market or who run a small or medium oil mill.

Reasons to Choose KMEC Integrated Oil Press

  • Wide application for various vegetable oil seeds such as peanuts, soybeans, sunflower seeds, sesame seeds, cottonseed, rapeseeds, palm kernels and so on.
  • Covering small space and easier to operate. Electric control cabinet makes the operating safer and easier. More efficient and labor-saving.
  • Continuous working with low noise.
  • High rate of oil yield with purer oil and good condition oil cakes. Vacuum filters in the machine help cleaning oils.
  • Be able to do both cold and hot pressing with automatic temperature rising and oil-cleaning system.
seeds

Differnt Models of Integrated Oil Press Machine Specifications

We offer integrated oil press machines with different models and capacities. Below are the technical data of each model.
Note: YZS-30, YZS-60, YZS-70 integrated oil press machines are specially designed for making sesame oil, but they also perform well in processing peanut seed, sunflower seeds and rape seeds.

Model Power(KW) Capacity(KG/H) Dimension(MM) Weight(KG) Vacuum Pump(L)
YZS-30 Oil Press 1.5 15 900*900*1100 156 4
YZS-60 Oil Press 2.2 30 600*650*880 210 4
YZS-70 Oil Press 4 30 1000*1000*1250 256 4

Model Capacity(T/24H) Power(KW) Dimensions(MM) Weight(KG)
YZS-80A Integrated Oil Press 2-3 5.5+0.75 1860*670*1680
1060*590*600
780
YZS-95A Integrated Oil Press 5 7.5+1.5 2250*890*1820
1230*640*570
900
YZS-100A Integrated Oil Press 5 7.5+1.1 2270*750*1820
1220*590*600
900
YZS-120A Integrated Oil Press 6 15+1.1 2280*890*1775
1350*700*600
1000
YZS-130A Integrated Oil Press 10 18.5+1.5 2350*810*2000
1350*700*570
1000
