YZL Series Oil Press

The YZL series screw oil expeller are advanced screw expeller pressing, characterized by their high oil output rate with good quality, simple design, easy to use and continuous operation. These seed oil expeller can be used to press various raw material, such as peanut, beans, rape and cotton seeds, sesame, olive, sunflower, coconut, grass seed etc.

This kind of Screw Oil Expeller is composed of feeder, gearbox, pressing cage, screw shaft and machine stand etc. It has better results to press soybean and cotton seeds. It utilizes the screw shaft that is set-up with different styles of screws and rotates when machine is running to push the material into chamber. Then the oil is separated out through the extrusion of pressing worm and pressing ring.

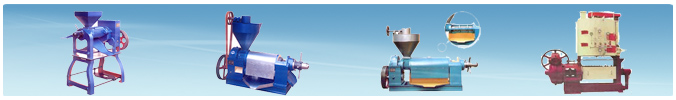

  YZL-78A screw oil expeller YZL-105 screw oil expeller

  YZL-130 screw oil expeller 200A-3 seed oil expeller

Main Technical Data

MODEL CAPACITY(KG/H) POWER(KW) NET WEIGHT(KG) PACKING(MM)
YZL78A 42-65 5.5 210 1000*550*580
YZL95A 150-210 7.5-11 520 1600*700*1350
YZL105 200-300 11-15 560 1825*700*1350
YZL130 420-500 18.5 820 2010*800*1380
200A-3 330-500 18.5 5000 2850*1850*3270

The YZL series screw oil expeller are advanced screw expeller pressing, can use for processing various oil seed, such as peanut, beans, rape and cotton seeds, sesame, olive, sunflower, coconut, grass seed etc.
