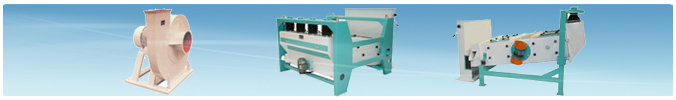

Seeds Cleaning Equipment

Vibratory Sieve
TQLZ Vibrating Sieve

TQLZ Vibrating Separator is a new product made by advanced technology.
It is used for cleaning the material in flour mill; rice plant feed works, food plant, oil plant, chemical plant and so on. Advanced design, high capacity, compact, convenient adjustment and maintenance, low noise, no pollution.

Model	Capacity(T/h)		Speed of the Motor	Power (Kw)	Weight (Kg)	Packing volume (mm)
Model	P-C	C	Speed of the Motor	Power (Kw)	Weight (Kg)	Packing volume (mm)
TQLZ63×100	10	5	920	2×0.25	360	1640×1285×1095
TQLZ100×100	15	8	920	2×0.25	420	1640×1610×1455
TQLZ100×150	25	12	920	2×0.37	520	1640×1610×1455
TQLZ100×200	35	16	920	2×0.37	540	1640×1610×1455
TQLZ150×200	50	24	960	2×0.75	650	2640×2110×1455
TQLZ180×200	70	35	960	2×1.1	860	2640×2410×1755

Destone

A high efficient and multi-functional wheat cleaning equipment. Under the synthetic action of vibrating, sifting and air -flowing, it removes stones from the grain stream. Two layer of screen design.
Two layer of screen design, separate the heavy impurities and light impurities completely and efficiently.It can simplify cleaning procedures and improve efficiency. double vibrators driving, balanced running, optimized designing for better.

Model	Capacity(T/h)	Aspiration(Pa)	Weight(Kg)	Power(Kw)	Packing volume(mm)
TQSF80	7-9	980	345	0.25×2	1335×1046×1800
TQSF100	9-11	980	400	0.25×2	1335×1246×1800
TQSF125	11-16	980	500	0.25×2	1335×1496×1800
TQSF150	16-20	980	750	0.25×2	1335×1746×1800

Horizontal Rotary Sieve

The machine can separate large impurities(such as stones, earth lumps, straws, pager) and smaller impurities (loose earth, sand, small seeds) from grain by means of plane motion of the sieve box, It has a good sealing capacity and doesn't pollute the air.

Advantage:
With two kinds of motion as rotary & vibration
Suitable for various materials with various apertures, such as wheat, oil paddy etc. With automatic cleaning system. Completely separate all kinds of impurities with three layers of sifters and aspirating structure.

Model	Capacity(T/h)	Power(kw)	Weight(Kg)	Screen Size(Mm)	Packing volume(mm)
TQLM80	4-8	1.1	736	150×80	1965×1265×1645
TQLM100	6-8	1.1	800	150×100	1965×1465×1645
TQLM125	8-10	1.1	856	150×125	1965×1715×1645
TQLM160	12-15	1.1	980	150×160	1965×1965×1645

1. 4-72 NO.4.5 Low Pressure Centrifugal Ventilator.

Feature: It is paired up the TQSF63 Gravity Grading Stoner. Used to aspirate in order to separate the materials by air suspension Pressure stability, blowing rate sufficient. Fan stand sturdy, blade balanced and low.
Power: 5.5 kW
Quantity: 1 set

2. GFY5 Rotary Seal

Feature: Used to discharge the material in the pneumatic conveying system. The air-seal property is reliable, the displacement of the material is easy and smooth..
Volume: 5 L Power: 0.25 Kw Quantity: 2sets
