YZS-30 Sesame Oil Mill Machine

The YZS-30 oil expeller, which can expel walnut oil and sesame oil for immediate consumption, is perfect for mobile operations such as at a vegetable market, a supermarket, a bazaar in the countryside, or even at home. The residue can be used as fertilizer or forage .


This walnut oil and sesame oil mill is practically designed, compact, light and easy to handle. It automatically expels and filters the oil simultaneously, with a high rate of production and greater oil yield. All parts of walnut oil and sesame oil mill machine can be dismantled, installed and maintained easily. Raw material quantities of 0.2-0.4kg are allowed to be fed into the mill when the mill is hot . Usually, there are four main parts in the integrated sesame oil press, they are oil press, filter press, hooper and electrical cabinet.

Main Part in the Sesame Oil Press

Below are some main parts in the sesame oil press machine. In the sequence of hooper, electrical carbinet and oil filter.

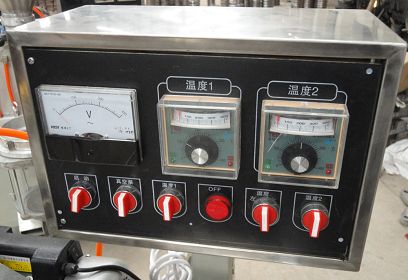

hopper electrical cabinet oil filter

Full Set Sesame Seeds Oil Production Expeller

packing of sesame seeds oil press sesame seeds oil production expller
Performance Specification of the YZS 30 Sesame Oil Press

Model Diameter of shaft(mm) Capacity Motor Dry cake residue Dimension(mm)
YZS-30 37 15-- 20 kg/h 1.5KW ≤8% 700×700×1200

Technical Parameters of New Type YZS Series Sesame Seeds Oil Production
Model Motor V-belt Net Weight Dimension
YZS-30 1.5KW (YC90L-4) 220V, Single phase,50HZ 1050 B TYPE 156 KG 700×700×1200 MM


Quality Guarantee Terms

Quality guarantee term is for one year. Any broken which are caused by machine-self and quality will be responsible for our manufacturer. Others which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
For quantity more than five units of our new type YZS series sesame oil press machines or large quantity, we can give you discount in different degree. If you have any question or advice, pls feel free to contact us without any hesitation.
