BRIQUETTE MACHINE |
Charcoal machine
serials
The raw materials for the equipment are sawdust, wood
shavings, rice hull, crop straw, etc. After processing
by the machine, they can turn into new energy- the
machine-made charcoal. The serial of equipments have
won the golden prize of the National New Technology\New
Product Trade Fair for three times. They are proved
to be the ideal products with little investment and
instant effect
Brief introduction to the Charcoal Machine :
The Charcoal Machine is made up by bar fuel - forming
machine and charring furnace. For the large materials,
you should install a pulverizer. For raw materials
with big moisture content, you need to install a drier.
The equipments crush the raw materials into granules
within 10mm, dry them to make the moisture content
within 12%, put them into the bar fuel - forming machine
and mould them by high temperature and high pressure
(no additive), and then put them into the Charring
Furnace carbonizing, thus the charcoal is produced.
Flowchart of technology
Raw material ------ crush--------drier-------semi-finished
bar forming machine------carbon bar furnace-----finished
product
1. Crusher
| Capacity |
700 kg/h |
900 kg/h |
| Diameter of feeding material mm |
<=ø30 |
<=ø30 |
| Max. size of crush mm |
Ø10*20 |
Ø10*20 |
| Motor kw |
11kw |
11kw |
| Overall dimension (mm) |
1250*700*910 |
1300*900*1240 |
2. Drier
| Model |
Capacity |
Grain Size of Product
(Diameter)
|
Temperature
of Hot Air |
Power |
| HGJ-I |
250-300kg /1hour |
< 3mm & < 5mm |
180°C~250°C |
4kw |
| HGJ-II |
600-800kg /1hour |
< 3mm & < 5mm |
180°C~250°C |
5.5kw |
| HGJ-III |
1000-1400kg /1hour |
< 3mm & < 5mm |
180°C~250°C |
7.5kw |

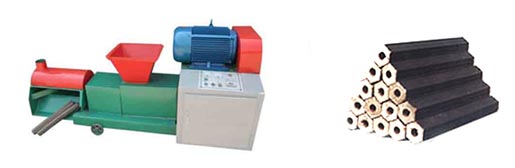

3. Briquette machine
| Model |
ZBJ-I |
ZBJ-II |
| Output kg/h |
130-150 |
200-300 |
| Motor Power (kw) |
15kw |
22kw |
| Weight |
1000kgs |
1500kgs |
| Size of products (mm) |
Ø50-55 |
Ø55-80 |
4. Carbon bar furnace
| Model |
THL-I |
THL-II |
| Output kg/per furnace |
1000 |
1500 |
| Motor (kw) |
1.5kw |
1.5kw |
| Furnace temperature (°C) |
430 |
430 |
|
|
|
|
